  • Jucolor A0 UV Flatbed Printer G5i I3200 High Resolution Fast Speed Ceramic Glass Printer 1610
    ❤ Add to collection

  • Jucolor A0 UV Flatbed Printer G5i I3200 High Resolution Fast Speed Ceramic Glass Printer 1610

    Type: Inkjet Printer
    Print Dimension: 164*115*17cm
    Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, A0 uv printer, uv printer, uv led printer
    Condition: New
    Plate Type: Flatbed Printer
    Place of Origin: China
    Brand Name: Jucolor R1610UV A0
    Use: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer, A0 UV Printer
    Automatic Grade: Automatic
    Color & Page: Multicolor
    Voltage: 110V/220V
    Dimensions(L*W*H): 220*140*125 CM
    Weight: 700 KG
    Warranty: 1 Year
    Ink Type: UV Ink
    Key Selling Points: large-format
    Marketing Type: New Product 2021
    Machinery Test Report: Provided
    Video outgoing-inspection: Provided
    Warranty of core components: 1 Year
    Core Components: Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine, A0 uv printer
    Product name: A0 uv printer
    Print head: 3 pcs EPSON DX10/I3200, Ricoh G5i print heads
    Printing size: 164*115cm/64.5*45inches
    Print height: 17cm
    Print speed: 18m2/h, 720 dpi, 12m2/h, 1440 dpi
    Ink type: UV Curable Ink
    Application: acrylic wood glass metal phone case leather pen ceramic tiles
    Cooling system: Water circulation cooling system
    After-sales Service Provided: Field maintenance and repair service
    Cerificiation: CE
    • ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
    • (Inventory: 99999)
Description
Type: Inkjet Printer
Print Dimension: 164*115*17cm
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, A0 uv printer, uv printer, uv led printer
Condition: New
Plate Type: Flatbed Printer
Place of Origin: China
Brand Name: Jucolor R1610UV A0
Use: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer, A0 UV Printer
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 110V/220V
Dimensions(L*W*H): 220*140*125 CM
Weight: 700 KG
Warranty: 1 Year
Ink Type: UV Ink
Key Selling Points: large-format
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine, A0 uv printer
Product name: A0 uv printer
Print head: 3 pcs EPSON DX10/I3200, Ricoh G5i print heads
Printing size: 164*115cm/64.5*45inches
Print height: 17cm
Print speed: 18m2/h, 720 dpi, 12m2/h, 1440 dpi
Ink type: UV Curable Ink
Application: acrylic wood glass metal phone case leather pen ceramic tiles
Cooling system: Water circulation cooling system
After-sales Service Provided: Field maintenance and repair service
Cerificiation: CE
Newest CJ-R1610UV A0 UV flatbed printer with 3 heads for large format 164*115*17 cm printing size ,it can printing CMYK white and varnish at the same time on rotary and flat material for all Ad.
Specification
Model
CJ-R1610UV Large A0 UV Printer
Print Head
3 pcs EP DX10/XP600/4720 Print Heads
Max Printing
164*115 CM /64.5*45 Inches
Printing Height
17 CM
Inks Color
CMYK+White +Varnish
Printing Speed
17 m2/h (720*720dpi)
12 m2/h (720*1440dpi)
8 m2/h (1440*1440dpi)
Print Resolution
720dpi, 1440dpi, 2160dpi, 3200dpi
Printing Materials
Pen, Phone Case, Glass, Plastic, Board, Leather, Rubber, Lighter, Metal, Wood, Porcelain, PVC, ABS, Acrylic, Aluminum, Ceramic Tile, Marble, Granite, Paper etc.
Printing Software
Maintop/ Photoprint
Picture Mode
PSD/ TIFF/ BMP/ EPS/ JPG
Computer System
Windows 7/Window 8/Window 10
Date Interface
USB3.0 High Speed Interface Transfer System
Power
50-60Hz, 1000-1500W,110 V/ 220 V
Working Environment
Temperature 25-30℃; Humidity 40%~60%
Machine Size
255*168*131 CM
Package Size
270*185*157.5 CM
Machine Weight
Net.480KG/Gross.580KG
Product Description

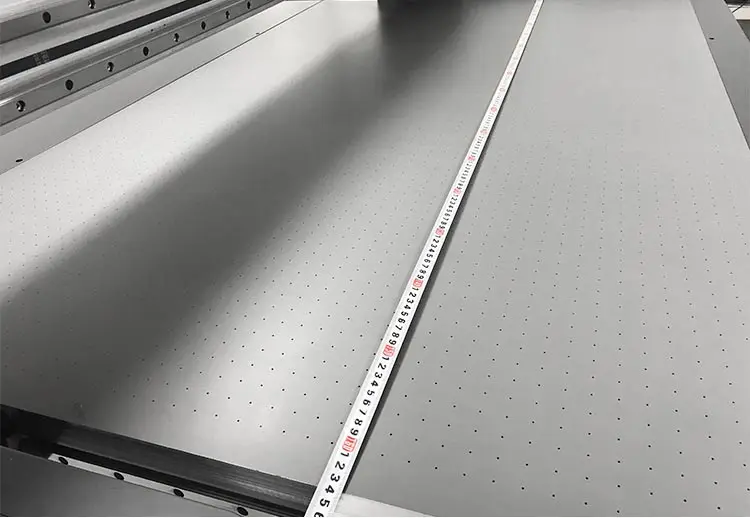

Vacuum Adsorption Platform

164*115 cm printing size of vacuum adsorption table with margin rule mark which can allow to print on the flexible media also,more productively.

Double Fixed Ball Screw

CJ A0 UV printer uses HI-WIN 13.5 cm double straight square rail on X axis which drive the carriage move more high precision.Long working hours, anti-defamation, anti-oxidation, corrosion resistance.

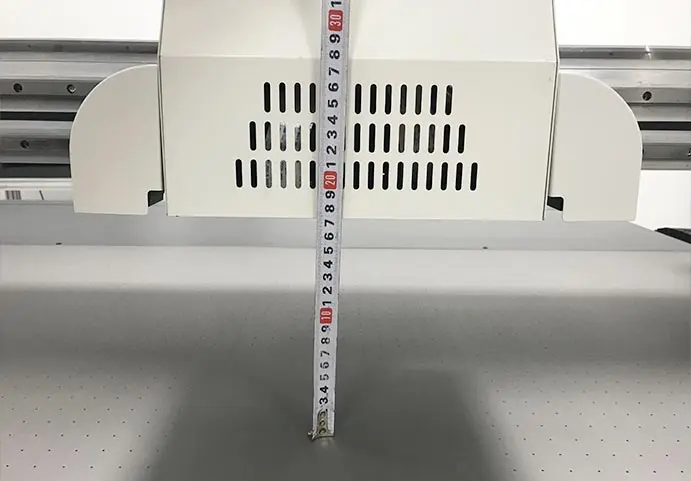

Printing Height

The height of the suitable material can be automatically adjusted by the software, and the printing can be 17 cm high

Ink Alarm System 500ML/Bottle

8-color ink cartridge design, makes the print effect is more realistic .The white ink circulation system work constantly keep white ink from sediment and last the lifespan of print head.

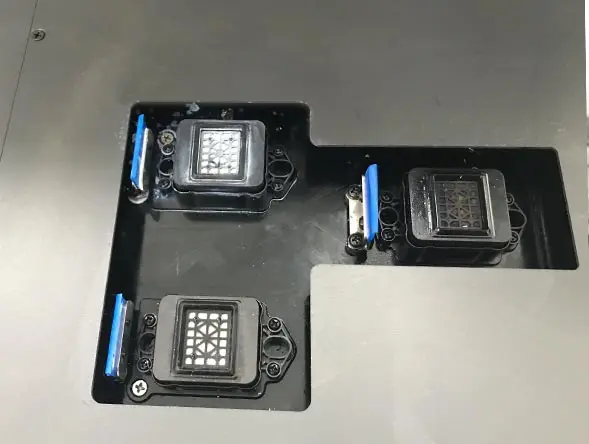

Automatic Cleaning & Protection Heads

Automatic print head wipe and keep wet system. Automatic flushing when power on and keep wet when off. Just for prevent print head clog during idle and after printing.

Printer head bracket

CJ A0 uv printer is 3 heads design,support DX10/XP600/
4720 heads ,one pass printing for all color CMYK white varnish

HI-WIN Guide Rail On Y-axis

CJ A0 Plus with 2 pieces HI-WIN straight square & strong screw rail on Y-axis which makes printing smoother and machine lifespan longer

Metal Support On Z-axis

Strong/heavy duty frame made by cast aluminum alloy, ensuring the smooth running of the carriage and work longer time

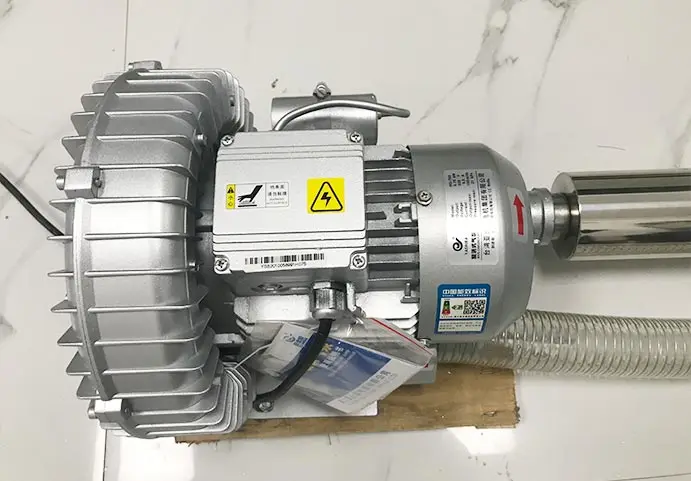

Air Suction Pump

1610 uv printer is bigger printer, we use air suction pump for this printer's suction platfrom, so can sucked the printed medias strongly with mute system, it runs more silently

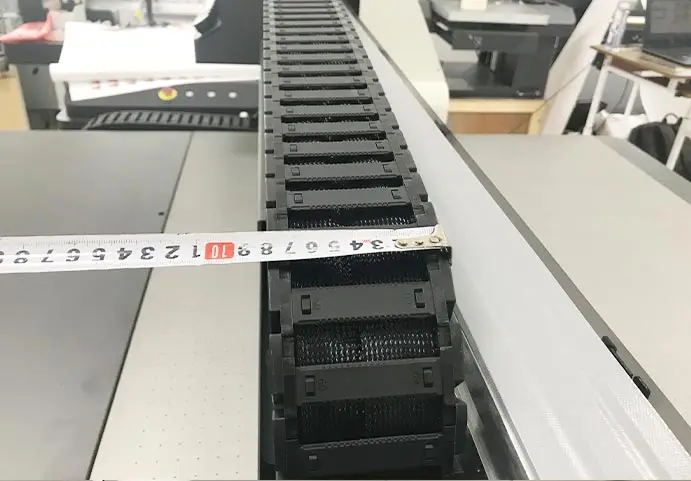

CJ-R1610UV Igus Belt

From Germany belt high precision and anti-friction.Well protect lines and water pipes, no deformation for decades using
Printing Samples
Customer Feedback
Company Profie
Product packaging
Model
CJ-R1610UV A0 UV Flatebed Printer
Shipping Size
270*185*157.5 CM
Gross Weight
580 KG
Packing
International Plywood Case
Shipping Methods
Express,Sea,Air,Land Shipping
Shipping Within 3-5 Days
