  • Perfect Laser - Large Format 2513 High Speed Wood Metal Glass Phone Case UV Flatbed Inkjet Printer
    ❤ Add to collection

  • Perfect Laser - Large Format 2513 High Speed Wood Metal Glass Phone Case UV Flatbed Inkjet Printer

    Type: Inkjet Printer
    Print Dimension: 1300 x 2500mm
    Applicable Industries: Printing Shops, Advertising Company
    Condition: New
    Plate Type: Flatbed Printer
    Place of Origin: Hubei, China
    Brand Name: Perfect Laser
    Use: Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Metal printer
    Automatic Grade: Automatic
    Color & Page: Multicolor
    Voltage: 220v /380v
    Dimensions(L*W*H): 180*150*100cm, 173*170 *76cm
    Weight: 300 KG
    Warranty: 2 years
    Ink Type: Special ink
    Key Selling Points: Multi Color
    Marketing Type: Hot Product 2022
    Machinery Test Report: Provide CE certificate
    Video outgoing-inspection: Provided
    Warranty of core components: 1 Year
    Core Components: Motor
    Product name: 1325 Inkjet 3D UV Flatbed Printer on Advertising Poster
    After-sales Service Provided: Engineers available to service machinery overseas
    Printing width: 0.6m*0.9m~1.3m*2.5m
    inkjet printer Packing: Wooden case
    Print head: DX5/DX7
    Resolution: 2880*1440dpi
    Material: Paper, PVC, Glass,, Paster, Metal, wood, plexiglass label phone etc
    Usage: Bill Printer, Card Printer, Cloths Printer, Label, Paper, Metal, Wood
    Number of printing head: single or double DX5 DX7
    • ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
    • (Inventory: 99999)
Description
Type: Inkjet Printer
Print Dimension: 1300 x 2500mm
Applicable Industries: Printing Shops, Advertising Company
Condition: New
Plate Type: Flatbed Printer
Place of Origin: Hubei, China
Brand Name: Perfect Laser
Use: Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Metal printer
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 220v /380v
Dimensions(L*W*H): 180*150*100cm, 173*170 *76cm
Weight: 300 KG
Warranty: 2 years
Ink Type: Special ink
Key Selling Points: Multi Color
Marketing Type: Hot Product 2022
Machinery Test Report: Provide CE certificate
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor
Product name: 1325 Inkjet 3D UV Flatbed Printer on Advertising Poster
After-sales Service Provided: Engineers available to service machinery overseas
Printing width: 0.6m*0.9m~1.3m*2.5m
inkjet printer Packing: Wooden case
Print head: DX5/DX7
Resolution: 2880*1440dpi
Material: Paper, PVC, Glass,, Paster, Metal, wood, plexiglass label phone etc
Usage: Bill Printer, Card Printer, Cloths Printer, Label, Paper, Metal, Wood
Number of printing head: single or double DX5 DX7

Perfect Laser - Large Format 2513 High Speed Wood Metal Glass Phone Case UV Flatbed Inkjet Printer

(Model: PE-UV2513)
Contact: Nicole Wechat/Whatsapp:+86 136 5988 6768 Email: Nicole@perfectlaser.net
Product Description
Perfect Laser - Large Format 2513 High Speed Wood Metal Glass Phone Case UV Flatbed Inkjet Printer made increasingly high requirements, Perfect Laser has also introduced a large format flatbed printer, model for the PE-UV2513. 1325 Inkjet Printing Machine 3D UV Flatbed Printer on Advertising Poster is equipped with a unique anti-collision device, which can be very good protection nozzle. 2500*1300mm format, high production efficiency. And using a long-term natural aging beam, durable, no deformation. The large format 1325 Inkjet Printing Machine 3D UV Flatbed Printer on Advertising Poster has been recognized by customers for its excellent quality.
Features of Perfect Laser - Large Format 2513 High Speed Wood Metal Glass Phone Case UV Flatbed Inkjet Printer
1. The rack adopts all-steel integration, the structure is more reasonable and it is not easy to be deformed, and the stability is stronger.
2. The large format flatbed printer use of high-performance screw: high-speed mute imported screw, high precision, low noise,wear-resistant, to ensure accurate positioning.
3. Configured a segmented suction platform to freely adjust the air volume to conveniently and effectively protect the nozzle and avoid ink waste, saving operating costs.
4. Professional color management software is used to ensure brilliant and full color output.
5. Ink cartridge automatic alarm system: When the ink level is less than one-third, the ink cartridge will automatically light the alarm, so that the print is uninterrupted and the production is more smooth.
Sample & Application
Applications of Perfect Laser - Large Format 2513 High Speed Wood Metal Glass Phone Case UV Flatbed Inkjet Printer
Large format flatbed printer can perform color inkjet printing on a variety of materials. Large format flatbed printer can not only infuse soft materials, but also can develop in diversified directions. For example, glass, wood, floor tiles, ceilings, ceramics and other materials can be sprayed with beautiful patterns, which is the development trend of digital printing technology.
Deatiled Images
Specification
Model type
Large format flatbed printer PE-UV2513
Maximum output size
2500mm*1300mm
Print head type
Ricoh Industrie nozzle
Ricoh Industrie nozzle
Droplet size
3.5pl
Ink Type
Thermal transfer ink, eco solvent ink
aqueous ink, sublimation ink, UV ink
Material Type
Print color
Precision smart dual four-color(CMYK), dual eight-color / eight-color (optional white ink scheme)
C/M/Y/K/W/LC/LM
Maximum media thickness
100mm
Bearing weight
Max 200KG
Printing accuracy
2880*1440dpi(32 PASS),1440*1440dpi
(16PASS),1440*720dpi
(8PASS),720*720dpi(4 PASS),720*360dpi
(2PASS)
360dpi*360dpi,
360dpi*720dpi,
720dpi*360dpi,
720dpi*720dpi,
720dpi*1440dpi,
1440dpi*1440dpi
720dpi
Lift function
Smart ink car lift,electronic automatic / manual smart sensors detect height adjustment
Image Format
TIFF(RGB & CMYK),BMP,PDF,EPS,JPEG
Ink system
1000ml*8 colors
NO. of print heads
2
3~4
8
Print speed
2 PASS 16M²/hr
Draft Mode：up to ikkok45 m²/h（4+2 print head speed）
3pass 720*600dpi @ 30sqm/h
4 PASS 8M²/hr
Standard Mode：up to 36 m²/h（4+2print head speed）
4pass 720*900dpi @ 20sqm/h
8 PASS 4M²/hr
High-precision mode:up to 24 m²/h（4+2 print head speed）
4pass 32m²/h
12 PASS 3.7M²/hr
Ultra-high precision：up to 17m²/h（4+2 print head speed）
6pass 20m²/h
16 PASS 2.5M²/hr
8pass 15m²/h
PowerRequirements
50Hz/60Hz,110/220VAC(±10%),1.5KW
Interface
high speed USB
Operating system
MS Window 98/Me/2000/XP/Win7
Operating system WindowsXP Home Edition or Professional Edition
Operation condition
Temperature 15℃~35℃，Reative humidity20%~80%
Print Workflow
RIP after printing
RIP printing
Cleaning System
Automatic cleaning system
Software


Maintop/Photoprint
/Wasatch
RAM
2G
Hard disk
80G 250G
Physical dimension
2000mm*3640mm*1260mm
3750mm*2100mm*1350mm
Package Size
2100mm*3750mm*1350mm
3950mm*2150mm*140mm
Curing lamp
Germany Osram LED light
RIP software
USA PP PHOTOPRINT
X axle rail brand and model
Taiwan HIWIN mute linear guide rail
X shaft belt
Japan Fujifilm industrial wire belt
X axis /Y axis servo motor
Taiwan Delta
X axis beam
Two times tempered high strength steel, high hardness, no deformation
X/Y axis print towline and wire harness
Germany IGUS
Y shaft drive screw
Imported grinding rod
Ink car lift rail brand
Taiwan HIWIN mute linear guide rail
Platform type and accuracy
Glass platform
Solvent capacity and liquid level alarm of main ink box
1L capacity, including liquid level alarm
Filtration and brand
Cobetter
Negative pressure control mode
Double negative color control
Negative pressure meter brand and model
Japan Fujifilm
Electrical switch brand
Japan Omron
Ink pipe
France Saint-Gobain
X/Y/Z axis master control driver
X/Y/Z three axis servo drive, delta exclusive research and development
Sprinkler board control
National exclusive network card, 3 cable transmission, easy to upgrade
Ink circulation system
White ink circulation, white ink mixing to prevent plugging
Frame structure
All steel one-piece frame, non welded or locked aluminum frame
Related Product

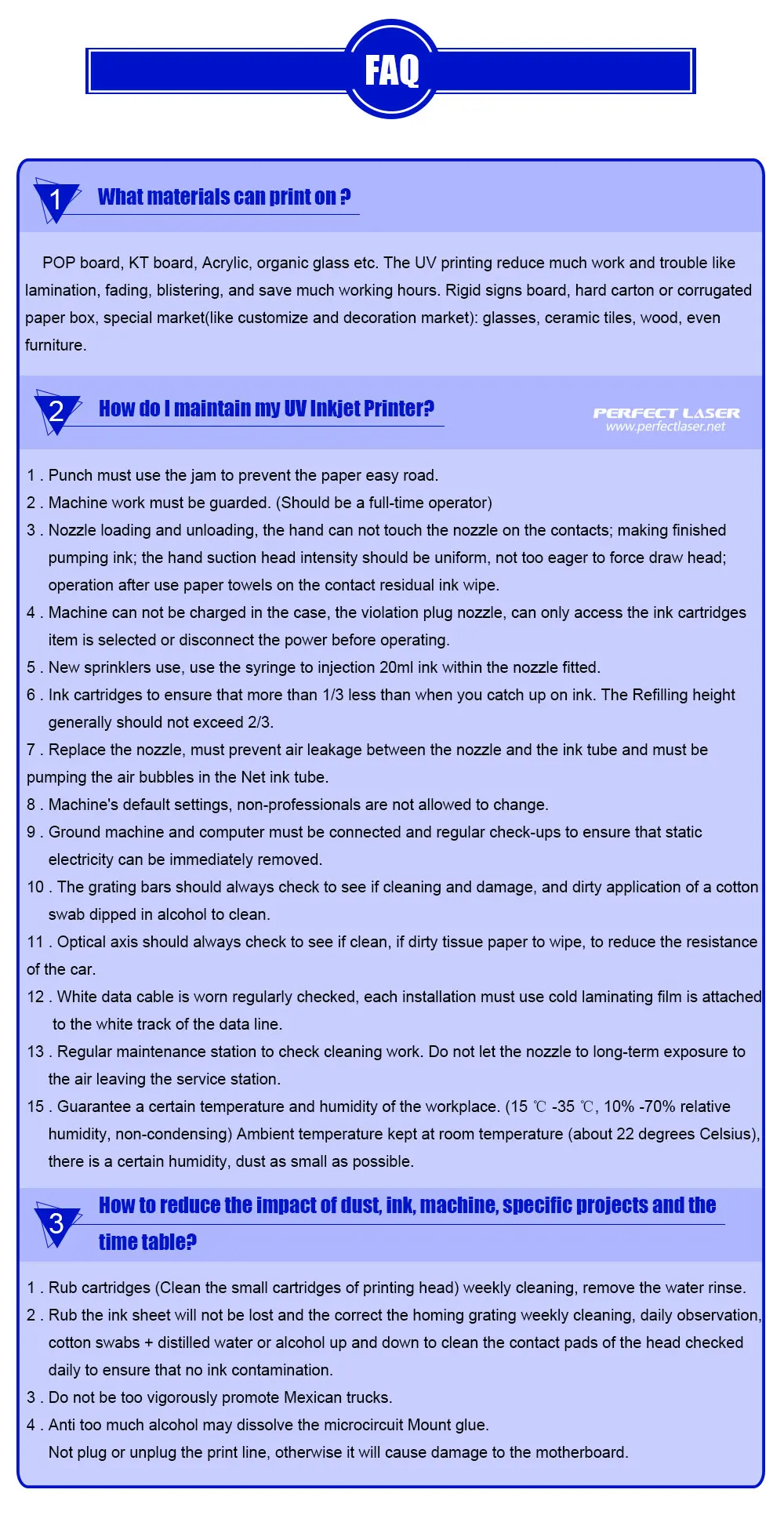

Q: What’s the package? A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof. Q: Will the package damaged during transportation? A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition. Q: How to install and run the machine? A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves. Q: How can I do if the machine goes wrong? A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Company Profile
Perfect Laser: * Established in 1995, more than 25 years history and 12 years exporting experience * 200 workers, 5000 square meters workshop * Certificate: CE, ISO:9001, RoHs, ects certificate * Markets: Export to more than 180 different countries * Total Annual Revenue: US$5 Million - US$10 Million
